Route server details:

  • General information on route servers is at AMS-IX Route Servers.
  • The SIX ASN is 33108.
  • Max prefix for IPv4 and IPv6 comes from your ASN's PeeringDB record. For your peering, if you use a max prefix with the route server, we recommend 200,000 for IPv4 routes and 70,000 for IPv6 routes.
  • IPv4 routes shorter than /8 are filtered and IPv6 routes shorter than /19 are filtered. Bogon ASNs and martian prefixes are filtered.
  • Strict filtering is performed using Internet Routing Registry (IRR) data. IRR Explorer may also be useful. You can verify your IRR data with:
    IPv4 prefixes: whois -h rr.ntt.net '!gasYOUR_ASN_NUM'
    IPv6 prefixes: whois -h rr.ntt.net '!6asYOUR_ASN_NUM'
    AS-SET ASNs: whois -h rr.ntt.net '!iYOUR_AS_SET_NAME,1'
    AS-SET IPv4 prefixes: whois -h rr.ntt.net '!a4YOUR_AS_SET_NAME'
    AS-SET IPv6 prefixes: whois -h rr.ntt.net '!a6YOUR_AS_SET_NAME'

    The route servers update from the IRR about once per hour. We mirror the following databases: AFRINIC, ALTDB, APNIC, ARIN, ARIN-NONAUTH, ARIN-WHOIS (synthesized), BBOI, BELL, CANARIE, JPIRR, LEVEL3, NTT-RPKI (synthesized), NTTCOM, RADB, REGISTROBR (synthesized), RGNET, RIPE, RIPE-NONAUTH, TC
  • The route servers also utilize Resource Public Key Infrastructure (RPKI) data and update hourly. If an ROA exists for a prefix and the route servers receive an announcement in violation, it will be dropped. At the SIX, an RPKI ROA replaces the need for an IRR route/route6 object. An IRR as-set remains needed for downstream ASNs.
  • The route servers also honor the choice of all networks with respect to the PeeringDB option 'Never via route servers'.
  • The route servers are configured to be BGP-passive thus your side needs to be BGP-active. If you have a PeeringDB record and IRR records, you are ready to peer with the SIX route servers. Your PeeringDB "IRR Record" should contain simply your IRR as-set name. The route servers use this information. (Email info_a_t_seattleix.net if your as-set is not being recognized, for special handling.)
  • IRR Setup tutorial. We recommend you create RPKI and IRR records at the Regional Internet Registry (RIR) which assigned/allocated your address space.
  • The route server service is intended to supplement, not replace your direct peering. If you have a peer you value, take the time to establish direct peering.
  • It is important to establish sessions with all of the route servers available on the VLANs to which you are attached, so that maintenance on one route server does not affect your connectivity.
  • The communities specified in the table below may be used to control the propagation of your routes. In addition, the RFC 7999 BLACKHOLE community 65535:666 is supported. See our blackholing page for additional details.
  • The route server software is BIRD. Much appreciation to the BIRD team.
  • BGP passwords (RFC 2385) are not supported.
  • Jumbo VLAN participants: You may want to prefer the jumbo VLAN for equal paths received from both VLANs. One way to do this is with MEDs (external metric) since that will not override AS path selection.
  • Write to info_a_t_seattleix.net to trunk your circuit to gain access to the Jumbo VLAN.
  • A looking glass for prefixes sent to the route servers is available for each participant at the participants page, including the reasoning behind any prefixes dropped by the filters. Data may be a minute or two old. The error files listing dropped prefixes are reset daily UTC.
  • The route server drops analysis page provides comprehensive details on SIX route server filtering statistics by rule, charts, and BIRD pseudocode to show how filtering is performed. A specific ASN can also be focused on, reachable from the participants page if you have errors indicated, or by adding "?asn=#" to the URL (replace # with an ASN).

Route server list:

VLAN (MTU) Protocol Server Address Peers Prefixes Received Unique Prefixes Blackholes Drops Status
Standard (1500) IPv4 rs2 206.81.80.2
" " rs3 206.81.80.3
" IPv6 rs2 2001:504:16::2
" " rs3 2001:504:16::3
Jumbo (9000) IPv4 rs2 206.81.82.2
" " rs3 206.81.82.3
" IPv6 rs2 2001:504:16:1::2
" " rs3 2001:504:16:1::3

Route server example peer configs:

JunOS:

"configuration protocols bgp"

group six-rserver2 {
    type external;
    neighbor 206.81.80.2 {
        description "ipv4 SIX-rserver2";
        family inet {
            unicast {
                prefix-limit {
                    maximum 150000;
                }
            }
        }
        peer-as 33108;
    }
}

group six-rserver3 {
    type external;
    neighbor 206.81.80.3 {
        description "ipv4 SIX-rserver3";
        family inet {
            unicast {
                prefix-limit {
                    maximum 150000;
                }
            }
        }
        peer-as 33108;
    }
}

group v6six-rserver2 {
    type external;
    neighbor 2001:504:16::2 {
        description "ipv6 SIX-rserver2";
        family inet {
            unicast {
                prefix-limit {
                    maximum 50000;
                }
            }
        }
        peer-as 33108;
    }
}

group v6six-rserver3 {
    type external;
    neighbor 2001:504:16::3 {
        description "ipv6 SIX-rserver3";
        family inet {
            unicast {
                prefix-limit {
                    maximum 50000;
                }
            }
        }
        peer-as 33108;
    }
}

IOS:

no bgp enforce-first-as
!
neighbor SIX-peer maximum-prefix 150000
neighbor v6SIX-peer maximum-prefix 50000
!
neighbor 206.81.80.2 remote-as 33108
neighbor 206.81.80.2 peer-group SIX-peer
neighbor 206.81.80.2 description six_rs2
!
neighbor 206.81.80.3 remote-as 33108
neighbor 206.81.80.3 peer-group SIX-peer
neighbor 206.81.80.3 description six_rs3
!
neighbor 2001:504:16::2 remote-as 33108
neighbor 2001:504:16::2 peer-group v6SIX-peer
neighbor 2001:504:16::2 description six_rs2
!
neighbor 2001:504:16::3 remote-as 33108
neighbor 2001:504:16::3 peer-group v6SIX-peer
neighbor 2001:504:16::3 description six_rs3

IOS-XR:

neighbor 206.81.80.2
  remote-as 33108
  use neighbor-group SIX
  description six_rs2
  enforce-first-as disable
  address-family ipv4 unicast
    maximum-prefix 150000 restart 30
!
neighbor 206.81.80.3
  remote-as 33108
  use neighbor-group SIX
  description six_rs3
  enforce-first-as disable
  address-family ipv4 unicast
    maximum-prefix 150000 restart 30
!
neighbor 2001:504:16::2
  remote-as 33108
  use neighbor-group SIXv6
  description six_rs2
  enforce-first-as disable
  address-family ipv6 unicast
    maximum-prefix 50000 restart 30
!
neighbor 2001:504:16::3
  remote-as 33108
  use neighbor-group SIXv6
  description six_rs3
  enforce-first-as disable
  address-family ipv6 unicast
    maximum-prefix 50000 restart 30

Route server communities. These are processed by the route servers and not propagated. Unless prevented by a community, routes will be propagated to other route server peers. (For extended communities, ro == so == soo.):

Evaluation Order Standard Extended Large Action
1     33108:0:peer-as Do not advertise to peer-as
2     33108:1:peer-as Advertise to peer-as
3     33108:0:0 Do not advertise to any peer
4 0:peer-as ro:0:peer-as   Do not advertise to peer-as
5 33108:peer-as ro:33108:peer-as   Advertise to peer-as
6 0:33108 ro:0:33108   Do not advertise to any peer
N/A 65001:peer-as ro:65001:peer-as 33108:65001:peer-as Prepend 1 time to peer-as
N/A 65002:peer-as ro:65002:peer-as 33108:65002:peer-as Prepend 2 times to peer-as
N/A 65003:peer-as ro:65003:peer-as 33108:65003:peer-as Prepend 3 times to peer-as

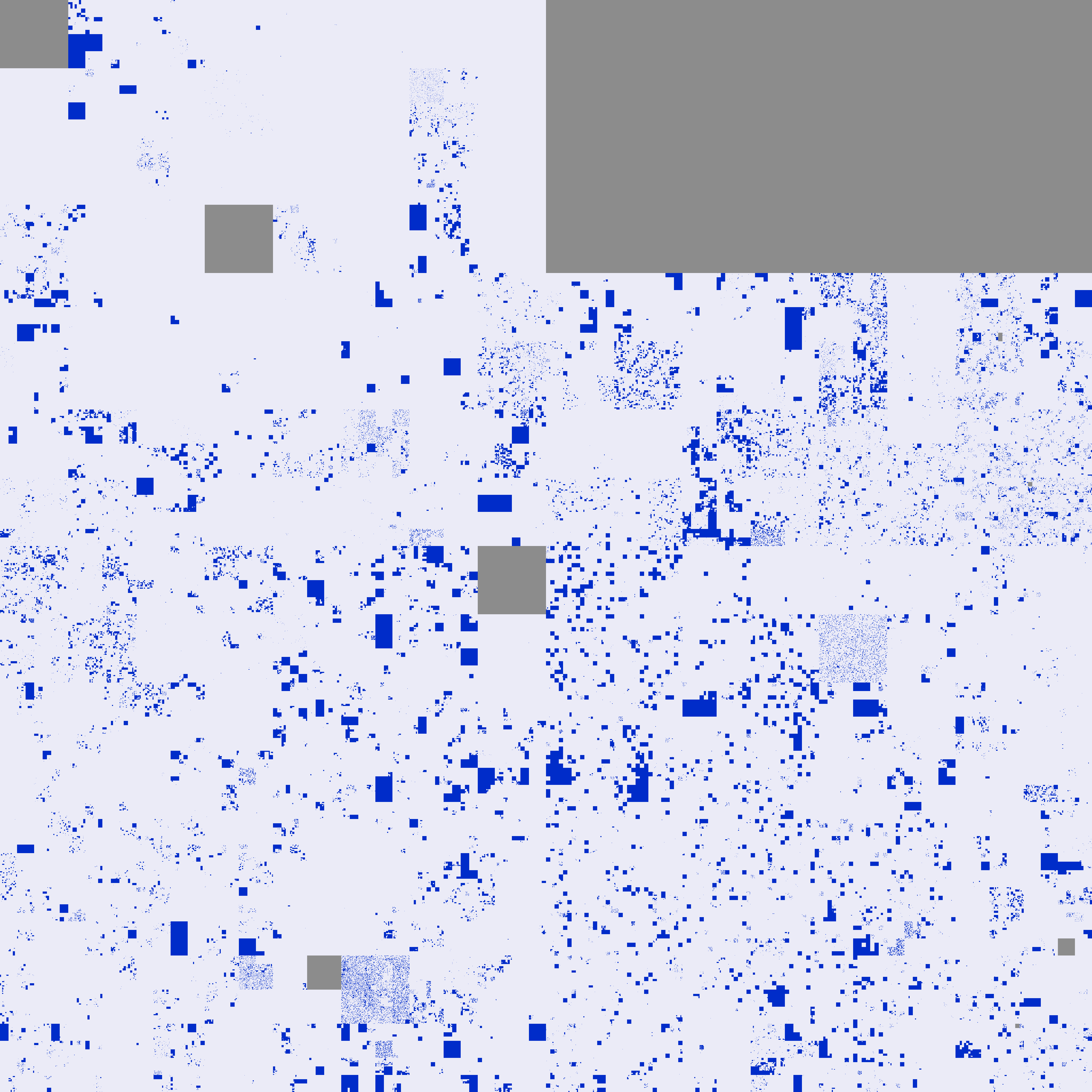

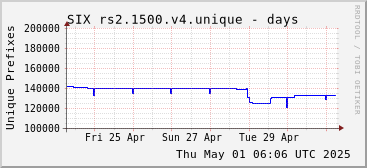

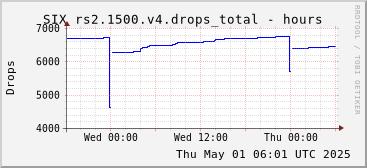

rs2 1500 MTU IPv4:

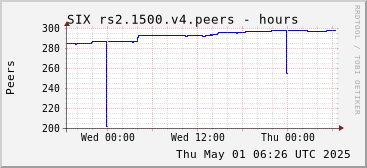

Day-scale rs2.1500.v4 peersWeek-scale rs2.1500.v4 peersYear-scale rs2.1500.v4 peers
Day-scale rs2.1500.v4 prefixesWeek-scale rs2.1500.v4 prefixesYear-scale rs2.1500.v4 prefixes

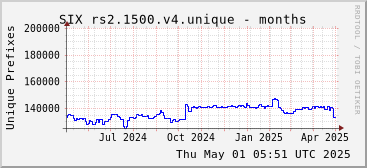

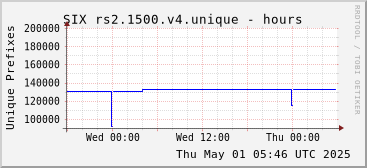

Day-scale rs2.1500.v4 unique prefixesWeek-scale rs2.1500.v4 unique prefixesYear-scale rs2.1500.v4 unique prefixes
Day-scale rs2.1500.v4 blackholesWeek-scale rs2.1500.v4 blackholesYear-scale rs2.1500.v4 blackholes

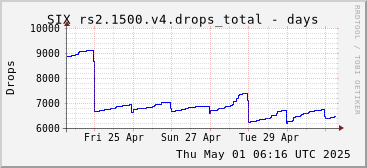

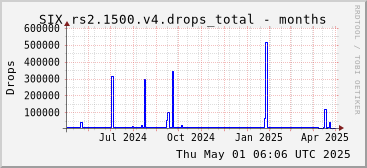

Day-scale rs2.1500.v4 dropsWeek-scale rs2.1500.v4 dropsYear-scale rs2.1500.v4 drops

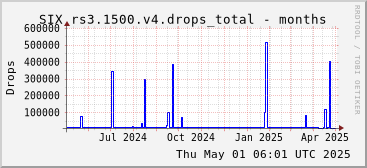

rs3 1500 MTU IPv4:

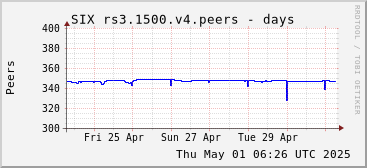

Day-scale rs3.1500.v4 peersWeek-scale rs3.1500.v4 peersYear-scale rs3.1500.v4 peers
Day-scale rs3.1500.v4 prefixesWeek-scale rs3.1500.v4 prefixesYear-scale rs3.1500.v4 prefixes

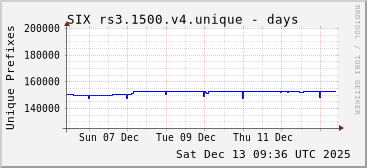

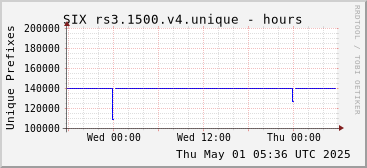

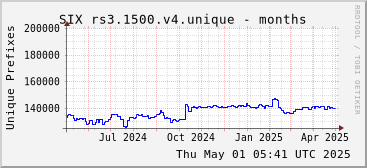

Day-scale rs3.1500.v4 unique prefixesWeek-scale rs3.1500.v4 unique prefixesYear-scale rs3.1500.v4 unique prefixes

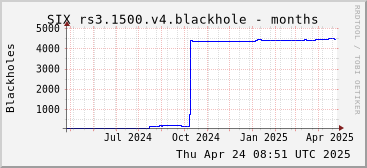

Day-scale rs3.1500.v4 blackholesWeek-scale rs3.1500.v4 blackholesYear-scale rs3.1500.v4 blackholes

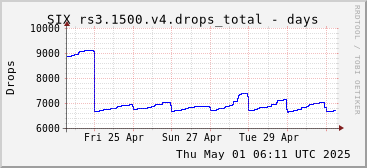

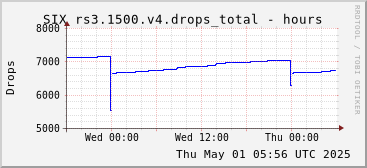

Day-scale rs3.1500.v4 dropsWeek-scale rs3.1500.v4 dropsYear-scale rs3.1500.v4 drops

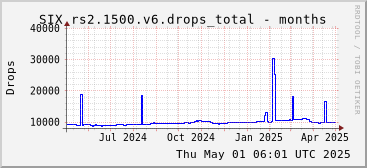

rs2 1500 MTU IPv6:

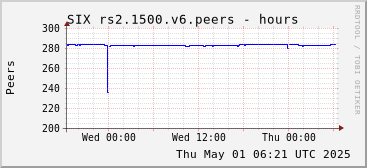

Day-scale rs2.1500.v6 peersWeek-scale rs2.1500.v6 peersYear-scale rs2.1500.v6 peers
Day-scale rs2.1500.v6 prefixesWeek-scale rs2.1500.v6 prefixesYear-scale rs2.1500.v6 prefixes

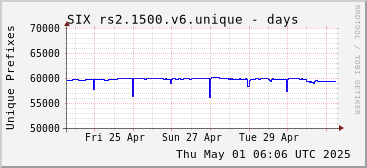

Day-scale rs2.1500.v6 unique prefixesWeek-scale rs2.1500.v6 unique prefixesYear-scale rs2.1500.v6 unique prefixes
Day-scale rs2.1500.v6 blackholesWeek-scale rs2.1500.v6 blackholesYear-scale rs2.1500.v6 blackholes
Day-scale rs2.1500.v6 dropsWeek-scale rs2.1500.v6 dropsYear-scale rs2.1500.v6 drops

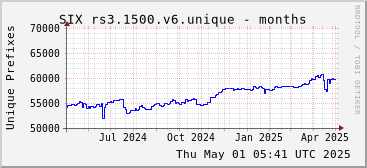

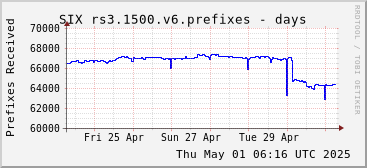

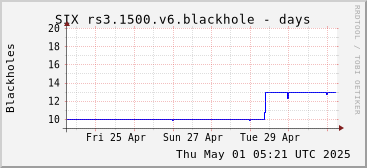

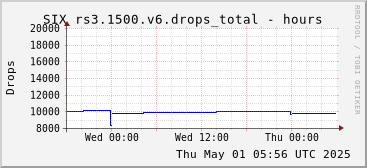

rs3 1500 MTU IPv6:

Day-scale rs3.1500.v6 peersWeek-scale rs3.1500.v6 peersYear-scale rs3.1500.v6 peers
Day-scale rs3.1500.v6 prefixesWeek-scale rs3.1500.v6 prefixesYear-scale rs3.1500.v6 prefixes

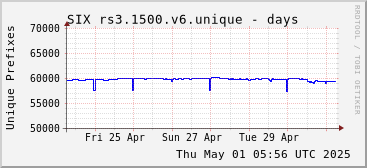

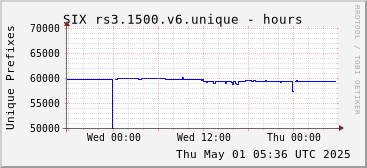

Day-scale rs3.1500.v6 unique prefixesWeek-scale rs3.1500.v6 unique prefixesYear-scale rs3.1500.v6 unique prefixes

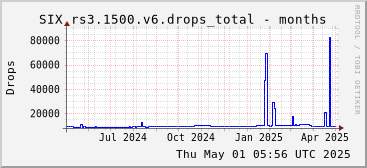

Day-scale rs3.1500.v6 blackholesWeek-scale rs3.1500.v6 blackholesYear-scale rs3.1500.v6 blackholes

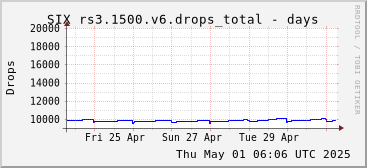

Day-scale rs3.1500.v6 dropsWeek-scale rs3.1500.v6 dropsYear-scale rs3.1500.v6 drops

rs2 9000 MTU IPv4:

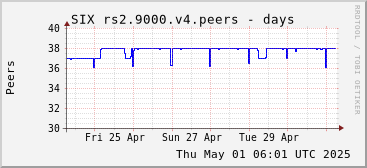

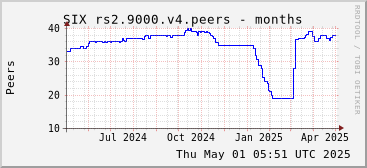

Day-scale rs2.9000.v4 peersWeek-scale rs2.9000.v4 peersYear-scale rs2.9000.v4 peers

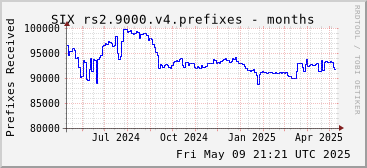

Day-scale rs2.9000.v4 prefixesWeek-scale rs2.9000.v4 prefixesYear-scale rs2.9000.v4 prefixes

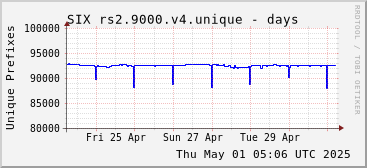

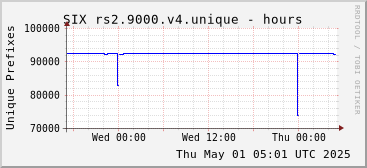

Day-scale rs2.9000.v4 unique prefixesWeek-scale rs2.9000.v4 unique prefixesYear-scale rs2.9000.v4 unique prefixes

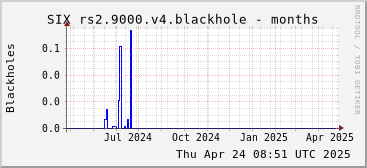

Day-scale rs2.9000.v4 blackholesWeek-scale rs2.9000.v4 blackholesYear-scale rs2.9000.v4 blackholes

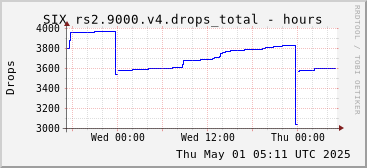

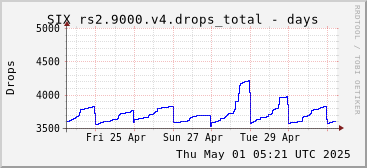

Day-scale rs2.9000.v4 dropsWeek-scale rs2.9000.v4 dropsYear-scale rs2.9000.v4 drops

rs3 9000 MTU IPv4:

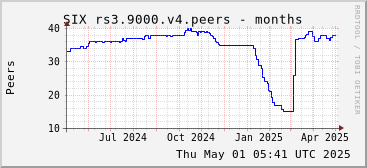

Day-scale rs3.9000.v4 peersWeek-scale rs3.9000.v4 peersYear-scale rs3.9000.v4 peers

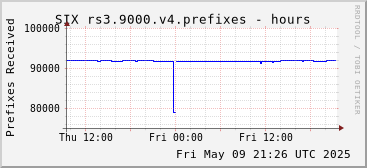

Day-scale rs3.9000.v4 prefixesWeek-scale rs3.9000.v4 prefixesYear-scale rs3.9000.v4 prefixes

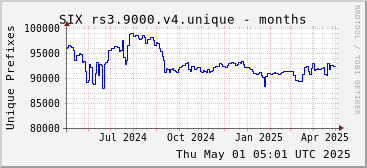

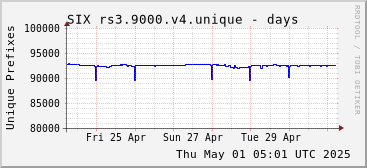

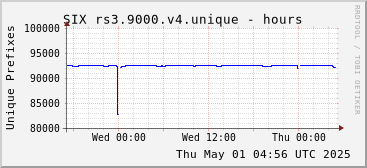

Day-scale rs3.9000.v4 unique prefixesWeek-scale rs3.9000.v4 unique prefixesYear-scale rs3.9000.v4 unique prefixes
Day-scale rs3.9000.v4 blackholesWeek-scale rs3.9000.v4 blackholesYear-scale rs3.9000.v4 blackholes

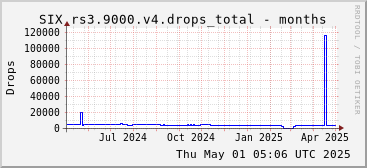

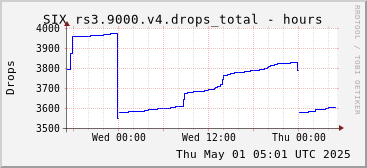

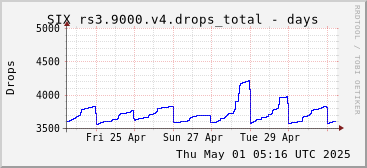

Day-scale rs3.9000.v4 dropsWeek-scale rs3.9000.v4 dropsYear-scale rs3.9000.v4 drops

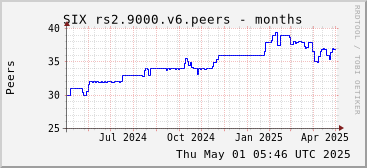

rs2 9000 MTU IPv6:

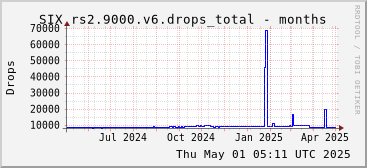

Day-scale rs2.9000.v6 peersWeek-scale rs2.9000.v6 peersYear-scale rs2.9000.v6 peers
Day-scale rs2.9000.v6 prefixesWeek-scale rs2.9000.v6 prefixesYear-scale rs2.9000.v6 prefixes

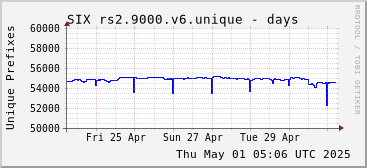

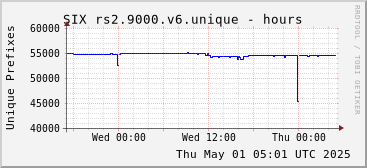

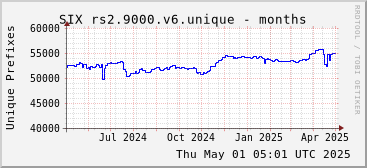

Day-scale rs2.9000.v6 unique prefixesWeek-scale rs2.9000.v6 unique prefixesYear-scale rs2.9000.v6 unique prefixes
Day-scale rs2.9000.v6 blackholesWeek-scale rs2.9000.v6 blackholesYear-scale rs2.9000.v6 blackholes

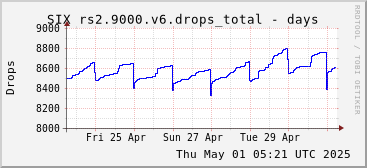

Day-scale rs2.9000.v6 dropsWeek-scale rs2.9000.v6 dropsYear-scale rs2.9000.v6 drops

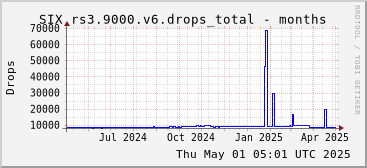

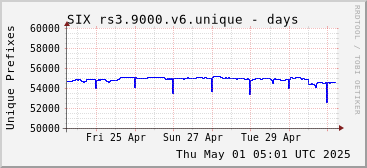

rs3 9000 MTU IPv6:

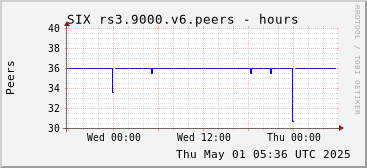

Day-scale rs3.9000.v6 peersWeek-scale rs3.9000.v6 peersYear-scale rs3.9000.v6 peers
Day-scale rs3.9000.v6 prefixesWeek-scale rs3.9000.v6 prefixesYear-scale rs3.9000.v6 prefixes

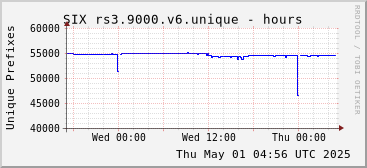

Day-scale rs3.9000.v6 unique prefixesWeek-scale rs3.9000.v6 unique prefixesYear-scale rs3.9000.v6 unique prefixes

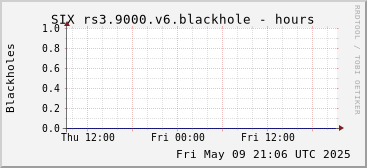

Day-scale rs3.9000.v6 blackholesWeek-scale rs3.9000.v6 blackholesYear-scale rs3.9000.v6 blackholes

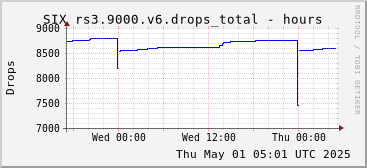

Day-scale rs3.9000.v6 dropsWeek-scale rs3.9000.v6 dropsYear-scale rs3.9000.v6 drops

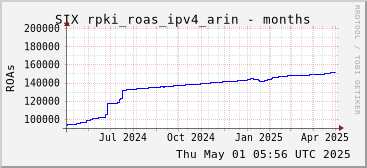

RPKI IPv4 ROAs in total and by RIR

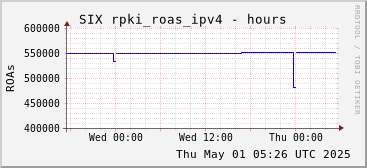

Day-scale rpki_roas_ipv4 Week-scale rpki_roas_ipv4 Year-scale rpki_roas_ipv4
Day-scale rpki_roas_ipv4_afrinic Week-scale rpki_roas_ipv4_afrinic Year-scale rpki_roas_ipv4_afrinic

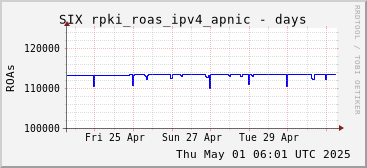

Day-scale rpki_roas_ipv4_apnic Week-scale rpki_roas_ipv4_apnic Year-scale rpki_roas_ipv4_apnic

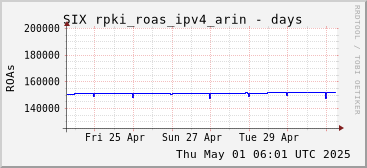

Day-scale rpki_roas_ipv4_arin Week-scale rpki_roas_ipv4_arin Year-scale rpki_roas_ipv4_arin

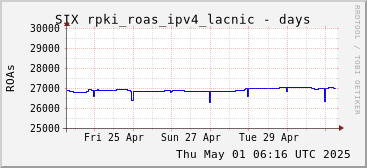

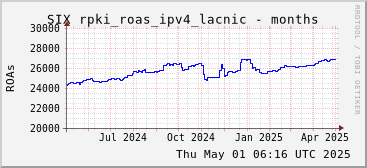

Day-scale rpki_roas_ipv4_lacnic Week-scale rpki_roas_ipv4_lacnic Year-scale rpki_roas_ipv4_lacnic

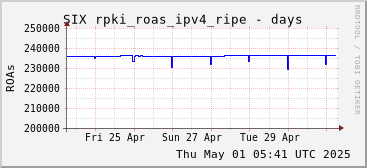

Day-scale rpki_roas_ipv4_ripe Week-scale rpki_roas_ipv4_ripe Year-scale rpki_roas_ipv4_ripe

RPKI IPv6 ROAs in total and by RIR

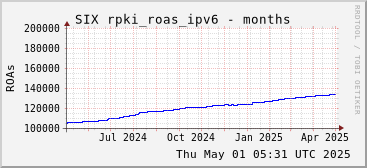

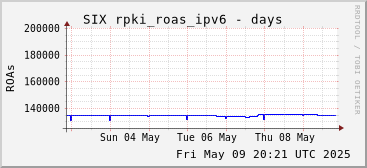

Day-scale rpki_roas_ipv6 Week-scale rpki_roas_ipv6 Year-scale rpki_roas_ipv6
